The heater can be applied for heating the cab of the freight vehicles, vans, storage battery cars and all kinds of other vehicles.
Can preheat the coolant of the engine to avoid wear and tear of engine that started at low temperature;
Can eliminate the window frost;
Environmentally product, low emissions, low fuel consumption; heater exhaust emissions to meet euro IV engine emissions requirements.
Compact structure, easy to install;
Can dismantle to a new car when replace vehicle.
Volatile technology, by the ceramic ignition plug will fuel heating evaporated into gas, fast ignition, full combustion.
The use of advanced automatic control technology, with a reliable abnormal operating conditions.
Fuel, electricity, temperature can be set arbitrarily .
Can use diesel- as fuel.

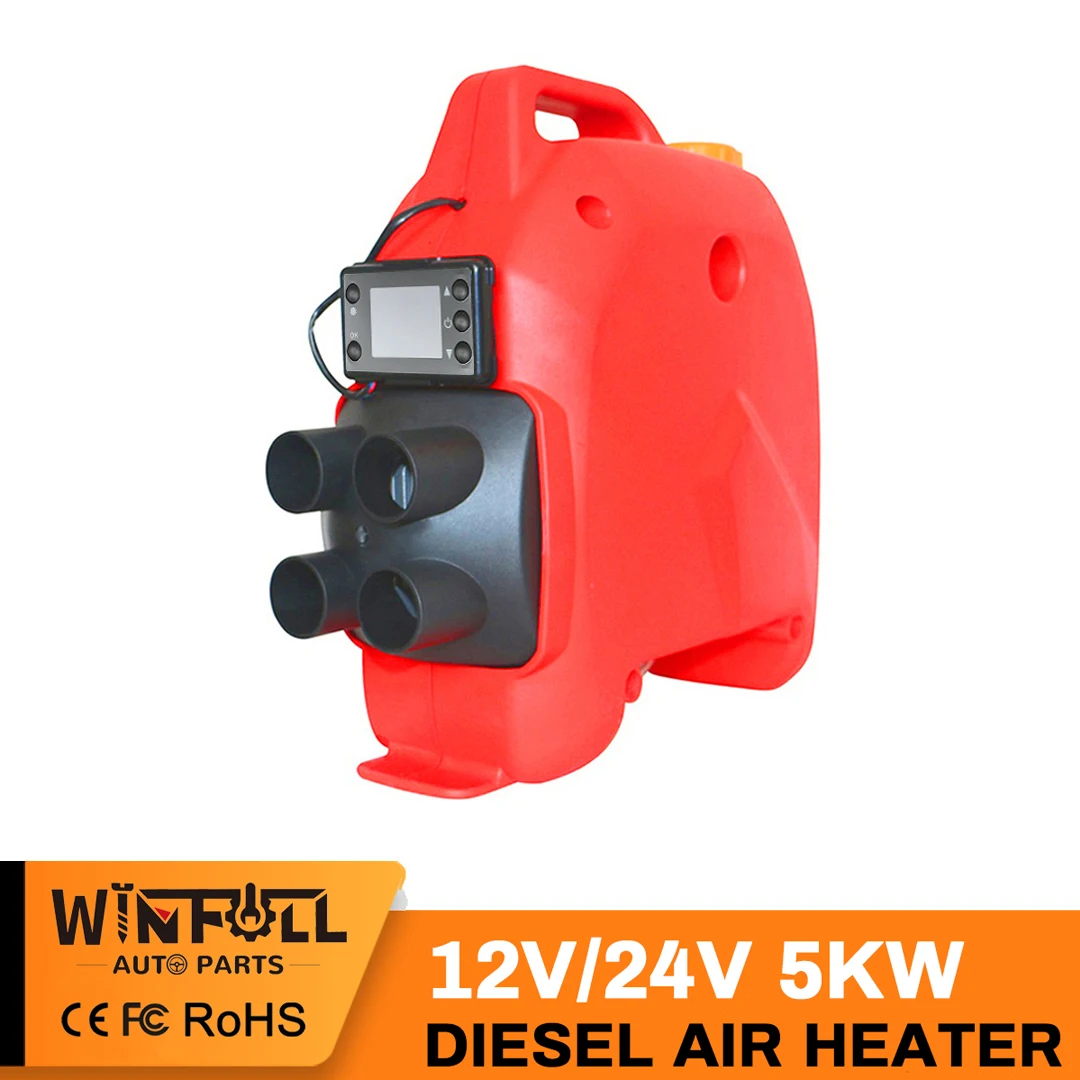

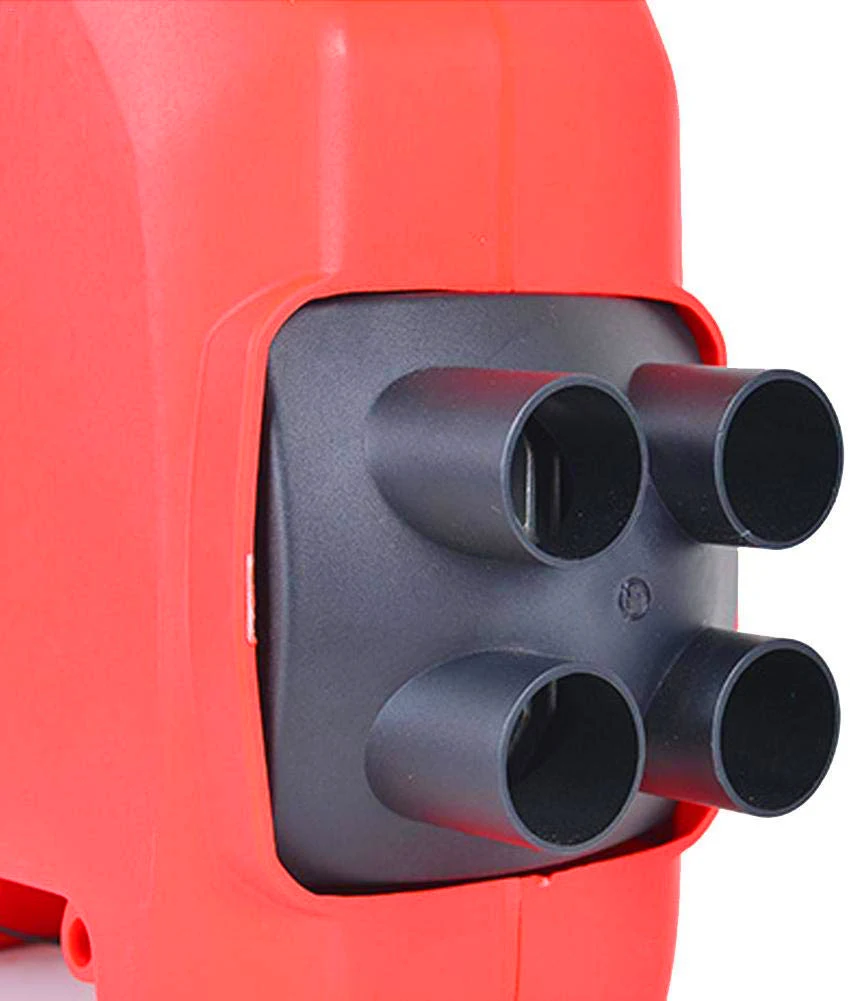

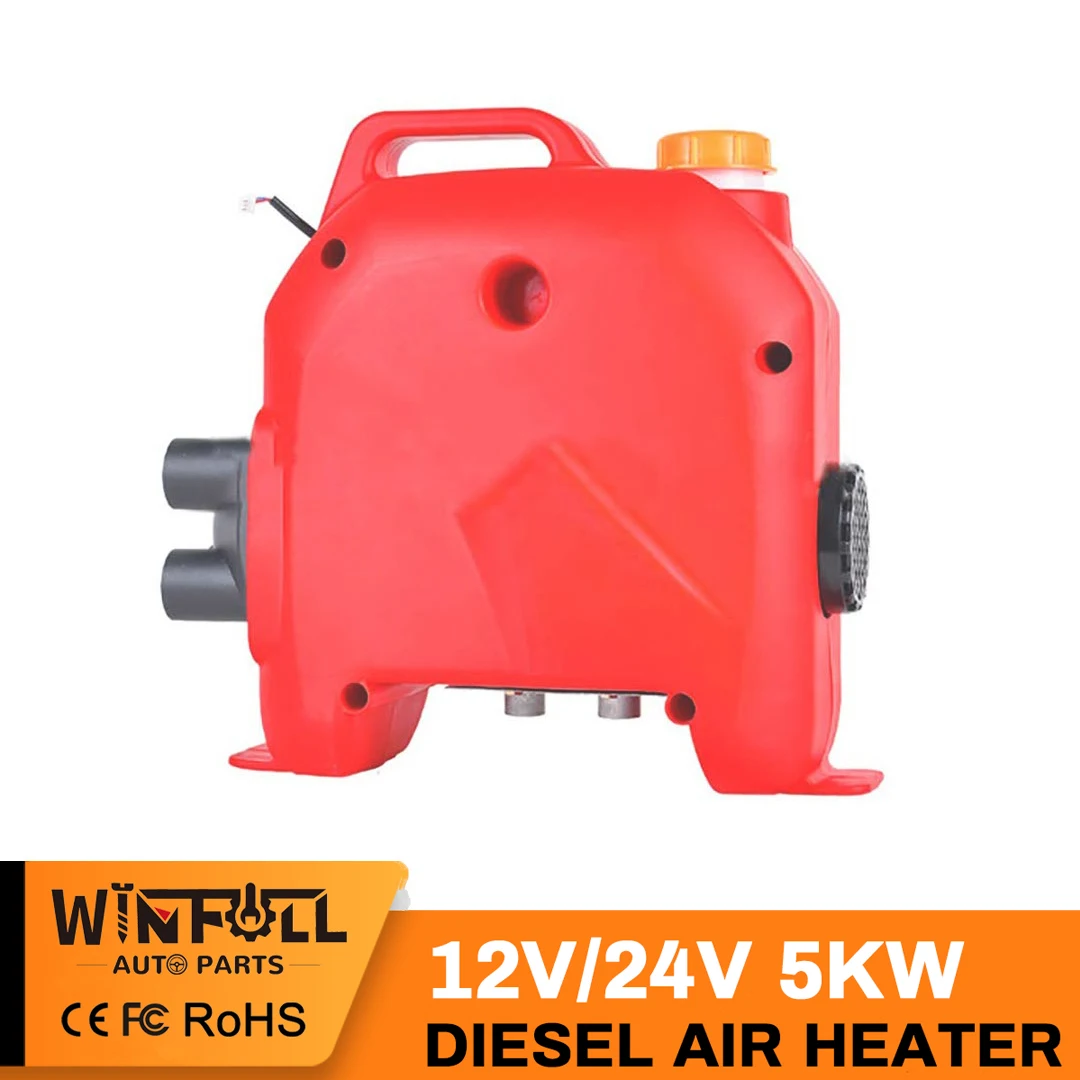

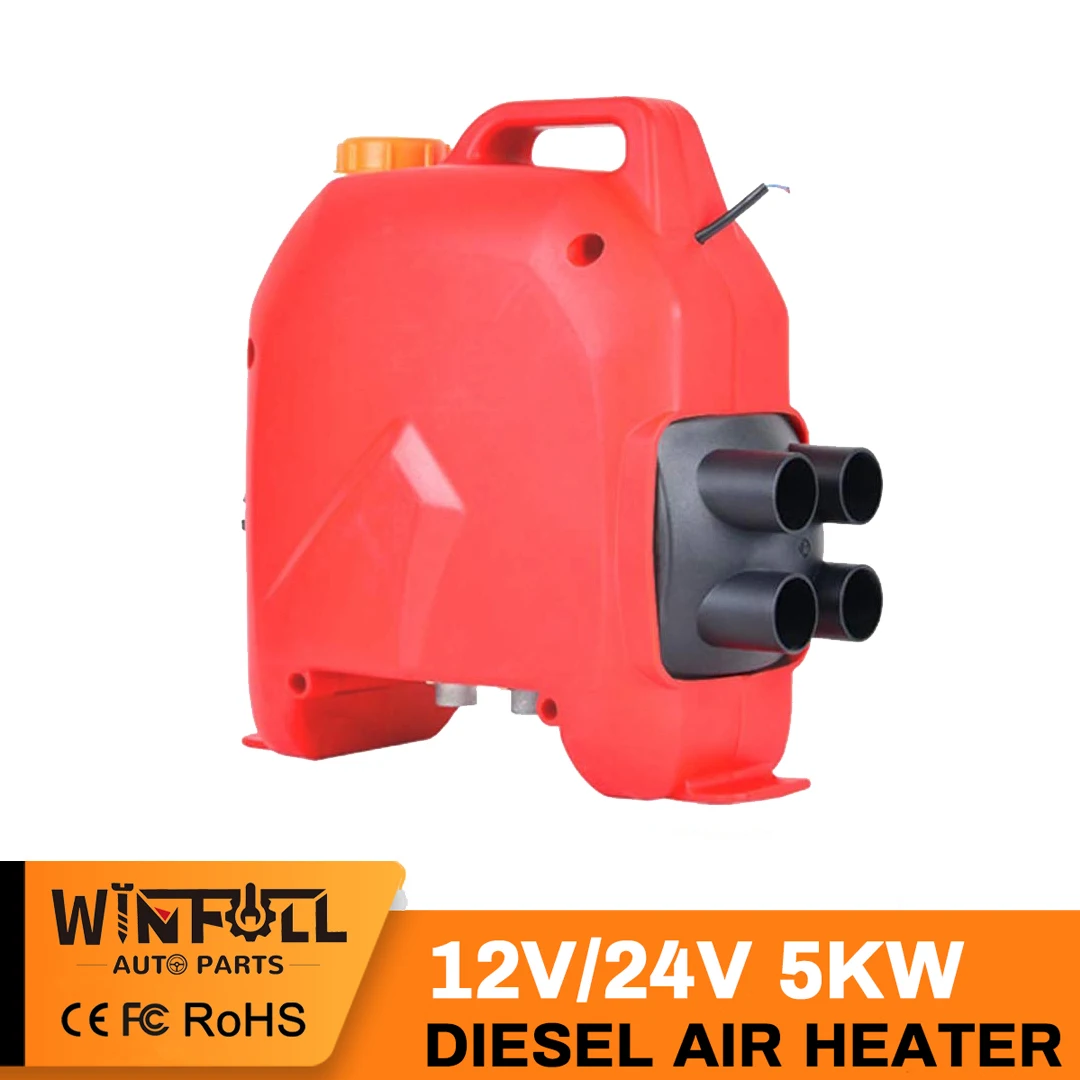

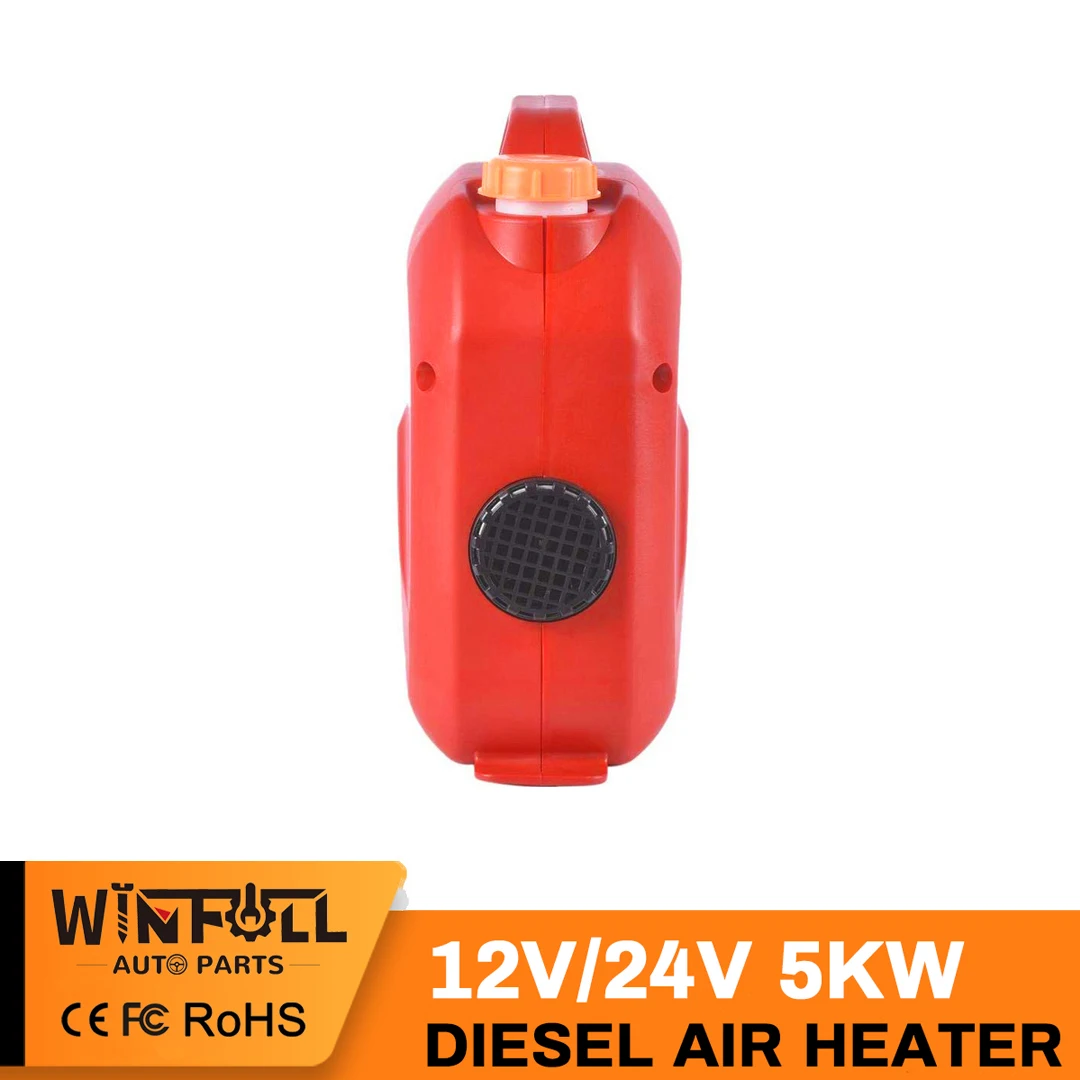

5KW 12V 24V All IN 1 Diesel Air Heater Parking Fuel Air Heater
The DIESEL AIR HEATER Equipped with LCD switch and remote control, Can be used at high altitudes, 1500 meters above sea level. Can be used as a window glass defrost, but also for the cab, studio, cabin thermal insulation services.
1. All in one unit, saving space and easy to move.
2. Easy to install and remove.
3. Can be used at high altitudes, 1500 meters above sea level.
4. The heater can be applied for heating the cab of the freight vehicles, vans, storage battery cars and all kinds of other vehicles.
5. Can eliminate the window frost.
6. Environmentally product, low emissions, low fuel consumption; heater exhaust emissions to meet euro IV engine emissions requirements.
7. Compact structure, easy to install
8. Can dismantle to a new car when replace vehicle.
9. Volatile technology, by the ceramic ignition plug will fuel heating evaporated into gas, fast ignition, full combustion.
10. The use of advanced automatic control technology, with a reliable abnormal operating conditions.
11. Fuel, electricity, temperature can be set arbitrarily .
12. The new air heater is the second generation of upgraded products, the aircraft to maintain the original economic and fuel-efficient warming on the basis of the characteristics of an increase of remote control features to make the control operation more simple and convenient. To increase the fixed bracket, the balance of the fan fan impeller rotation more stable, reducing noise.
13. Easy to install, economical and convenient. Can be used as a window glass defrost, but also for the cab, studio, cabin thermal insulation services.
1. The size is manual, and there may be an error of 0.5-1 cm.
2. There may be a color difference between the picture and the object.

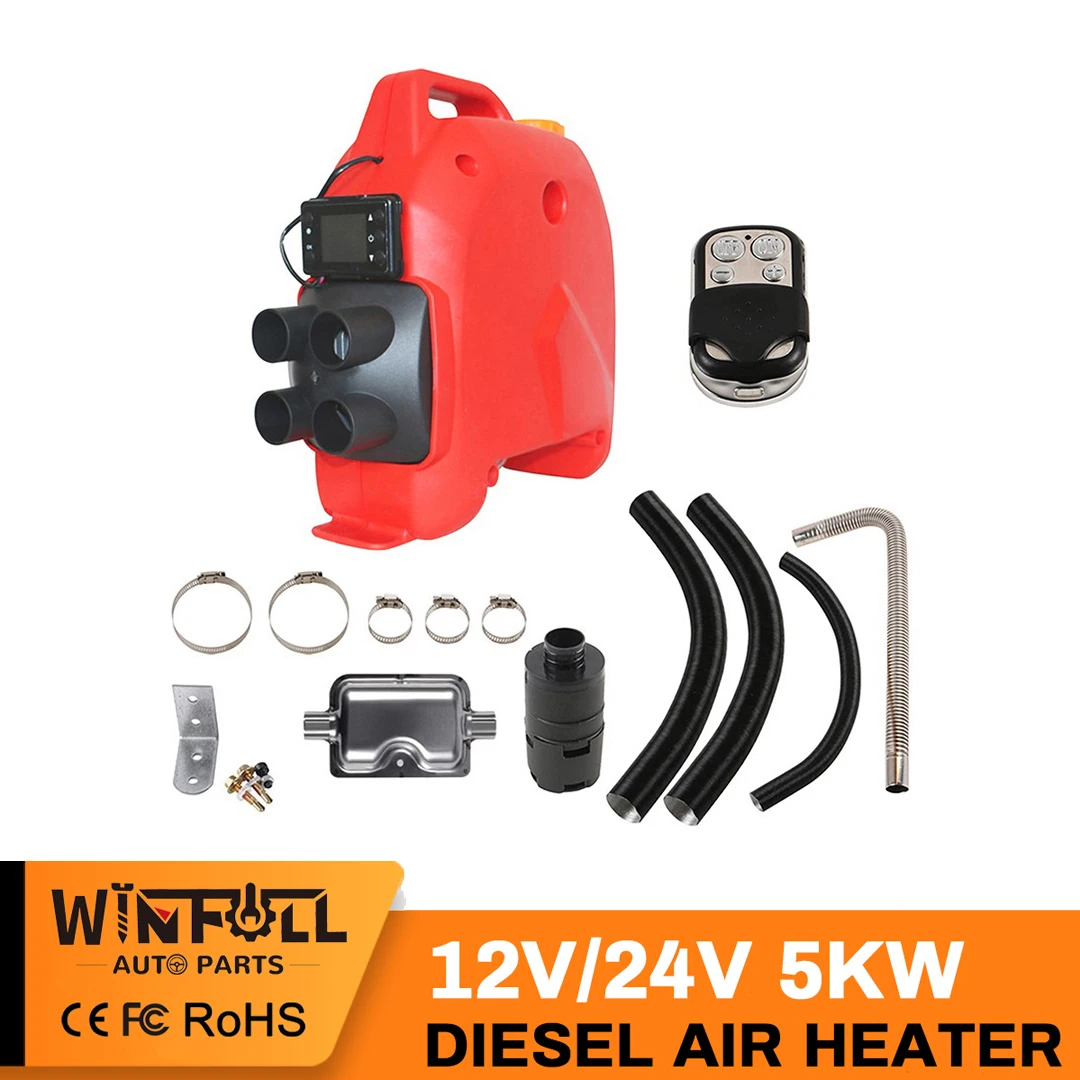

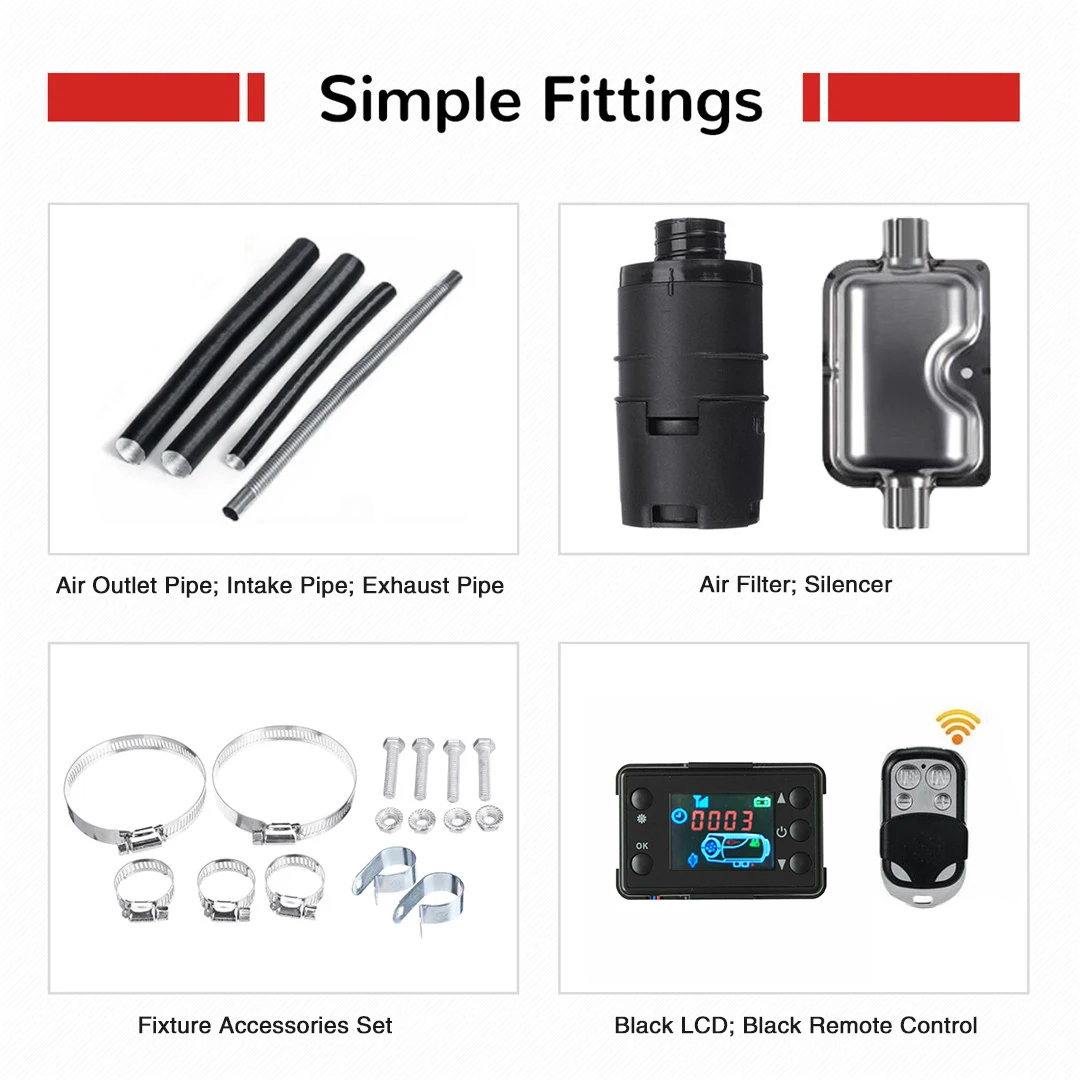

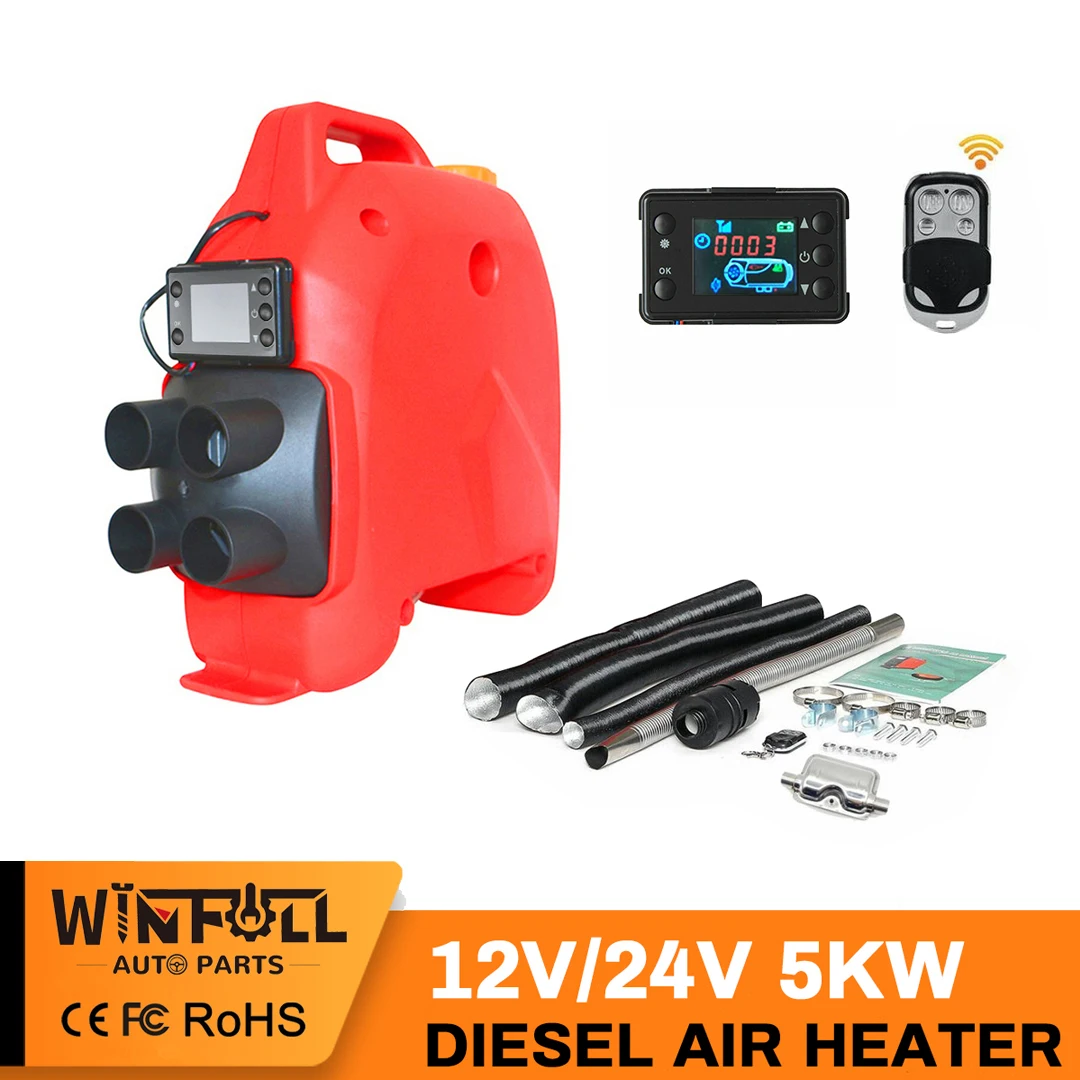

1 x Parking Heater (LCD Thermostat) 1 x Remote Control (Batteries NOT included) 2 x Air Outlet Pipe 1 x Intake Pipe 1 x Exhaust Pipe
1 x Silencer
1 x Air Filter
1 x Fixture Accessories Set
1.After the first installation, it should be turned on several times to completely eliminate the air in the fuel supply
system and make the fuel pipe full of fuel.
2.Perform a test run before use, and carefully check the leak and safety status of all connections during the test run.
If there is smoke emission, abnormal burning noise or fuel smell, turn off the heater, unplug the fuse, make it unable
to operate, and use it after professional maintenance.
3.Prior to each heating season, a qualified professional must perform an inspection to perform the following
(1) Check the air inlet and outlet for contaminants and foreign objects
(2)Cleaning the outside of the heater
(3)Check the circuit connector for rust and looseness
(4)Check the intake and exhaust pipes for blockage and damage
(5)Check the fuel line for leaks
4.When the heater is not used for a long time, it should be run every four weeks, about 10 minutes each time. The oil
pump and the combustion air fan prevent the mechanical parts from malfunctioning (solid death).
5.The air inlet and outlet of the heater must be kept free of blockage and dirt, and the warm air duct is unobstructed
to prevent overheating.
6.When replacing low-temperature fuel, the heater should be operated for at least 15 minutes to inject new oil into the
fuel line and fuel pump.
7.The heat exchanger of the heater should not be used for more than 10 years. After the expiration, it must be replaced
by genuine parts and replaced by the heater manufacturer or its authorized agent. At this time, the overheating
sensor must also be replaced at the same time.
8.The exhaust pipe that emits the exhaust gas from the heater, if it is arranged in the area of a person, must be
updated with genuine parts when the use time reaches 10 years.
9.When performing electric welding on a car, first remove the positive power cord of the heater from the battery and
ground it to avoid damage to the controller.
10.During the transportation and storage process, the ambient temperature of the heater should not exceed 40c~85c
to prevent damage to electronic components.
11.Only authorized customer service stations are allowed to install and repair heaters, and non-original parts are
prohibited from being used to avoid danger.
12.The heater is damaged by self-removal or failure to install and operate according to the regulations,The
manufacturer is not responsible for the warranty.
