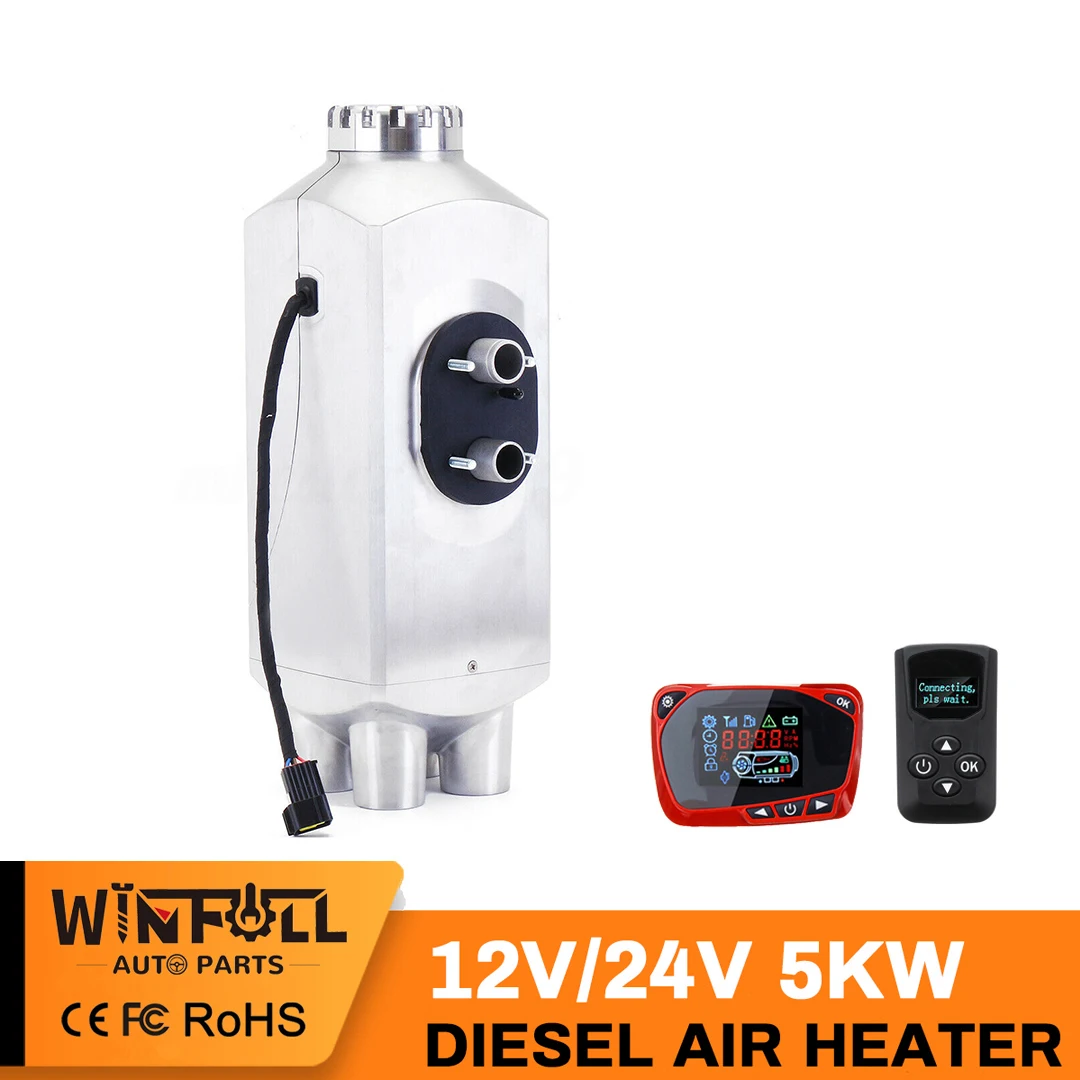

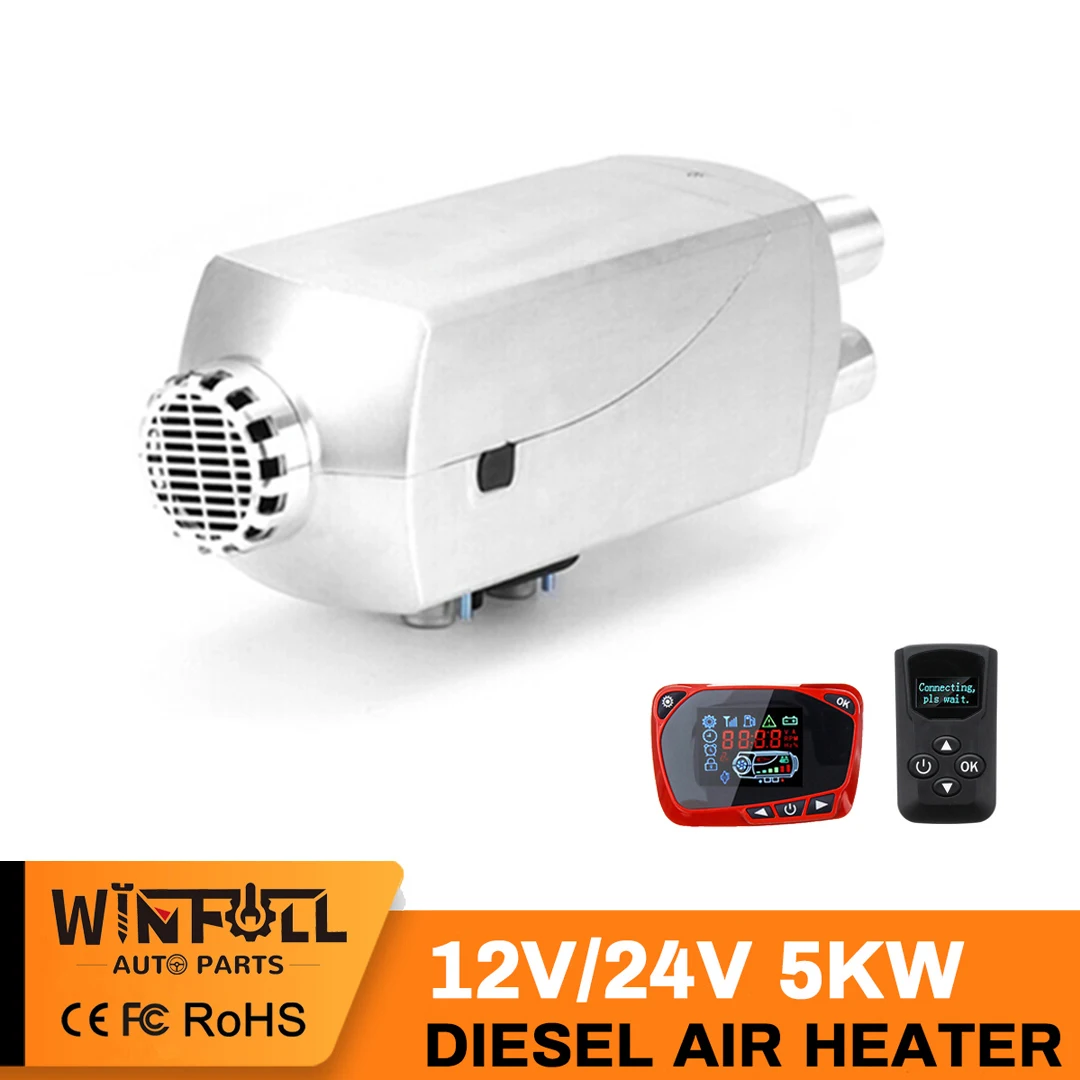

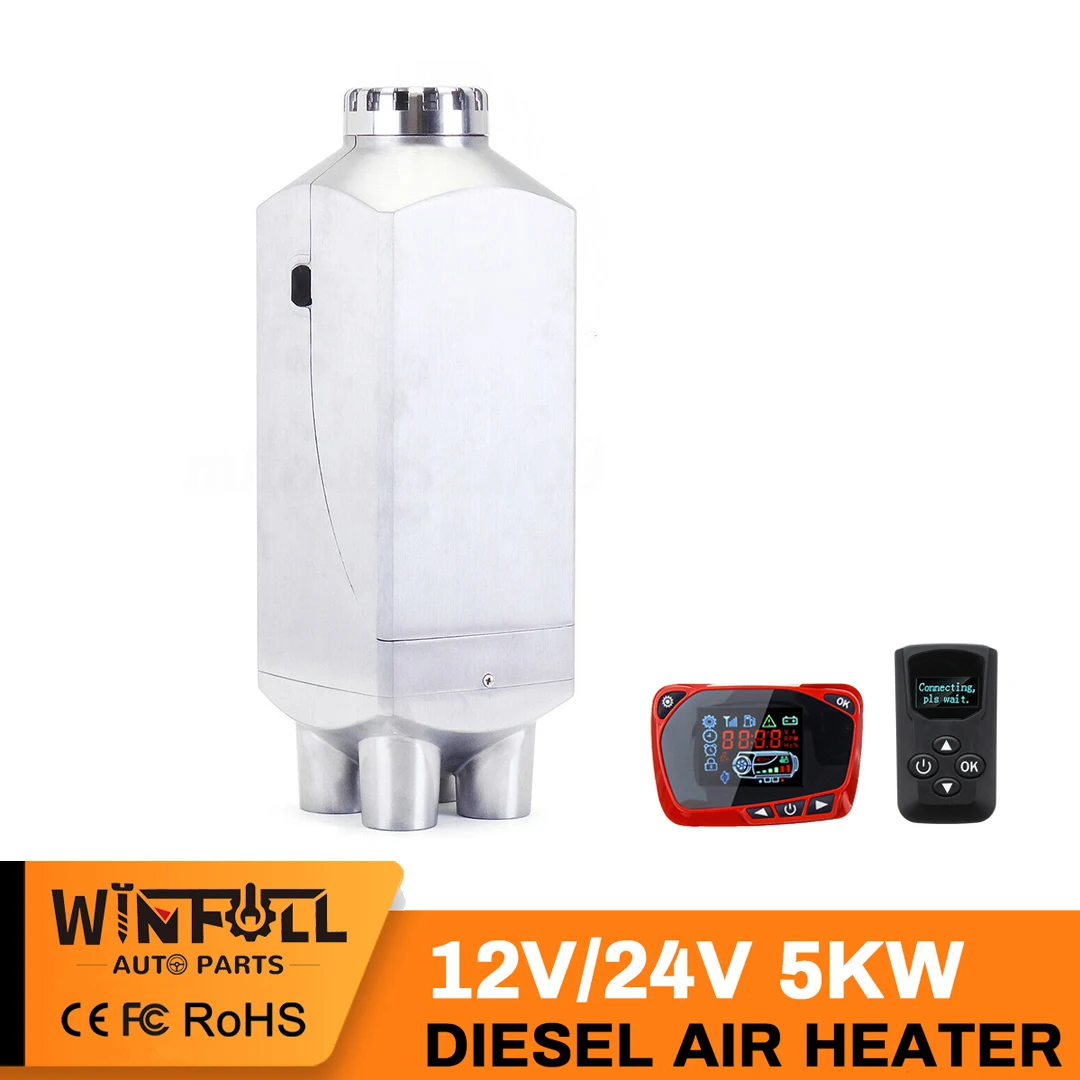

The heater can be applied for heating the cab of the freight vehicles, vans-, storage battery cars and all kinds of other vehicles.
Can preheat the coolant of the engine to avoid wear and tear of engine that started at low temperature;
Can eliminate the window frost;
Environmentally product, low emissions, low fuel consumption; heater exhaust emissions to meet euro IV engine emissions requirements.
Compact structure, easy to install;
Can dismantle to a new car when replace vehicle.
Volatile technology, by the ceramic ignition plug will fuel heating evaporated into gas, fast ignition, full combustion.
The use of advanced automatic control technology, with a reliable abnormal operating conditions.
Fuel, electricity, temperature can be set arbitrarily .
Can use diesel- as fuel.
- Get rid of damage to car causing by the sudden drop of temperature.
- Low noise: noise reduction processing with minimal noise.
- Easy installation: the compact design is good for using in a variety of narrow spaces.
- Low fuel and power consumption for longer periods of operation.
- Smooth, automatic room temperature control with temperature pre-set facility.
- With continuous monitoring and diagnostic system.
- Fuel supplied from the vehicle's own tank.
- Applicable to: various diesel mechanical vehicles such as cars, buses, RVs, trucks, engineering vehicles, etc.

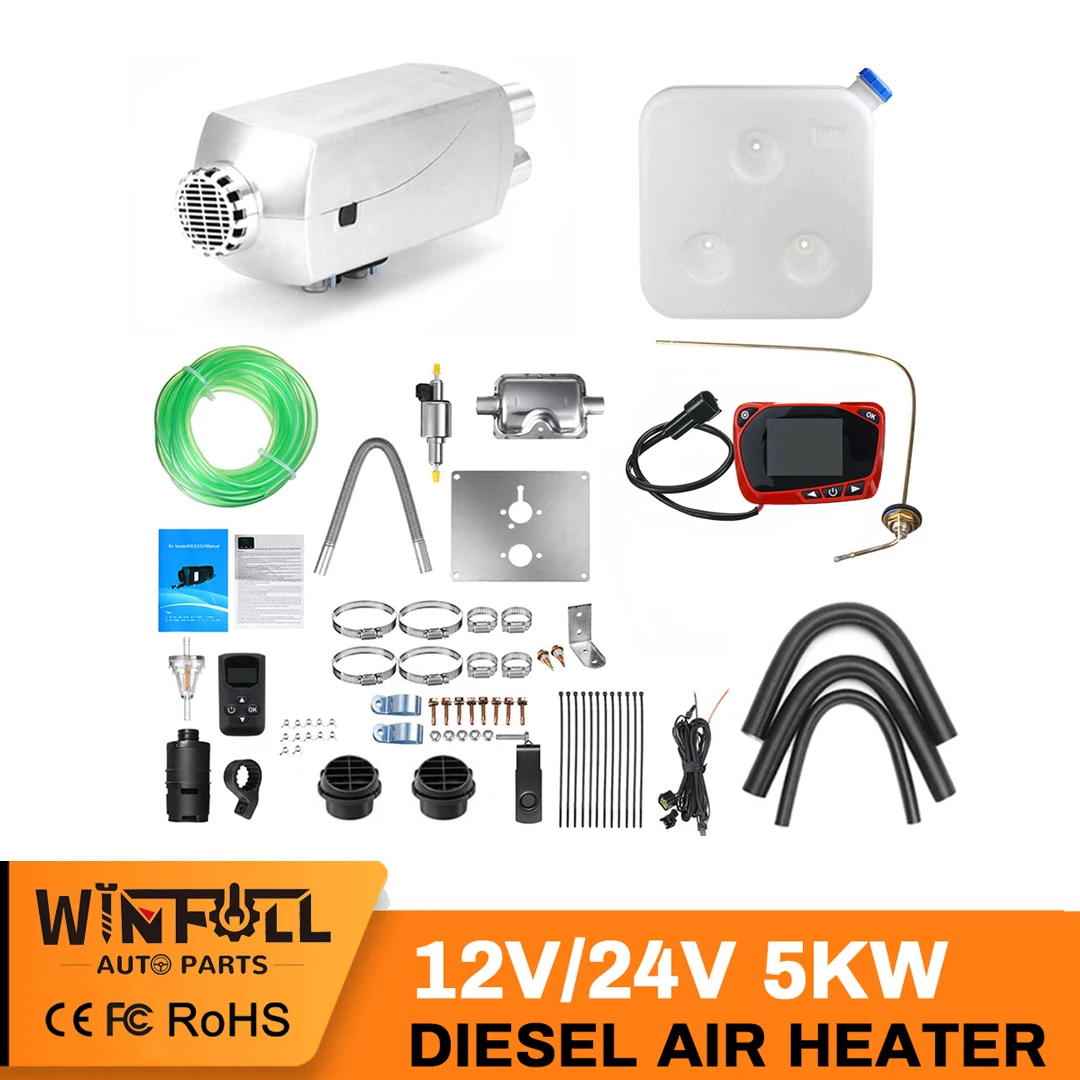

1 x Air Heater
1 x Red LCD Thermostat
1 x Red Remote Control(4-tunnel)
1 x Tank(10L)
1 x Silencer
1 x Air Filter
2 x Vent
1 x Green Fuel Hose
1 x Fuel Pump
2 x Air Outlet Pipe
1 x Intake Pipe
1 x Exhaust Pipe
1 x Fixed Plate
1 x Oil Nozzle
1 x Fuel Sander
1 x Main Wire Bundle
1 x Fastener Set
1 x Installation Kit
1 x Manual
It is necessary to prevent the object around the heater from being affected or damaged by high temperature.
When placing the exhaust port, it is necessary to prevent the exhaust gas from entering the interior of the vehicle through the overcooler, hot air inlet or window.
Combustion of air
Do not draw in the passenger compartment the combustion air used for the combustion of the heater.
Place the air intake should be noted that it can not be blocked by objects.
Heated air inlet
The supplied heated air must consist of fresh air or circulating air and is taken from a clean area.
Protective gates or other suitable tools must be used to protect the intake ducts.
Heated air outlet
When placing hot air pipes in a car, make sure that it is not easy to be touched to prevent injury or damage to the subject.
When arranging the exhaust pipe, it must be noted that the exhaust pipe outlet must avoid flammable materials, avoid heating or igniting ground combustibles or loading cargo.
Working e nvironment
1.Applicable ambient temperature:-40℃~40℃
2.Applicable altitude:≤3000 meter
3.Fuel: Must use light diesel oil suitable for the current environment (Note: This machine may not use gasoline fuel)
Safety instructions for installation and operation
The following measures are not allowed
- Change the key components on the heater.
- Use other manufacturer parts without the permission of the Company.
In the installation or operation of the specifications described in violation of the specification.
Only original accessories and original accessories are allowed for installation or maintenance.
Do not allow the use of heaters in the formation of flammable vapors or dust, as in the following facilities:
- fuel warehouse
- carbon storage warehouse
- wood warehouse
- granary and similar locations
The heater must be closed when refueling
If the fuel flows out of the fuel system of the heating equipment (leaked), it should be returned immediately to the service provider for repair.
During the operation of the heater, it is not allowed to stop the heater operation by power failure.
1. Installation, the fixed plate must be kept closed with the car sheet metal, so as not to burn the exhaust through the gap into the cab damage to the driver's body.
2. The length of the exhaust pipe shall not be less than 30 cm.
3. The exhaust outlet must be fixed in the open space.
4. Exhaust pipe outlet is not allowed to travel direction.
Recommendation: After the heater is fixed, it is recommended to use the sealant to seal the installation gap.
